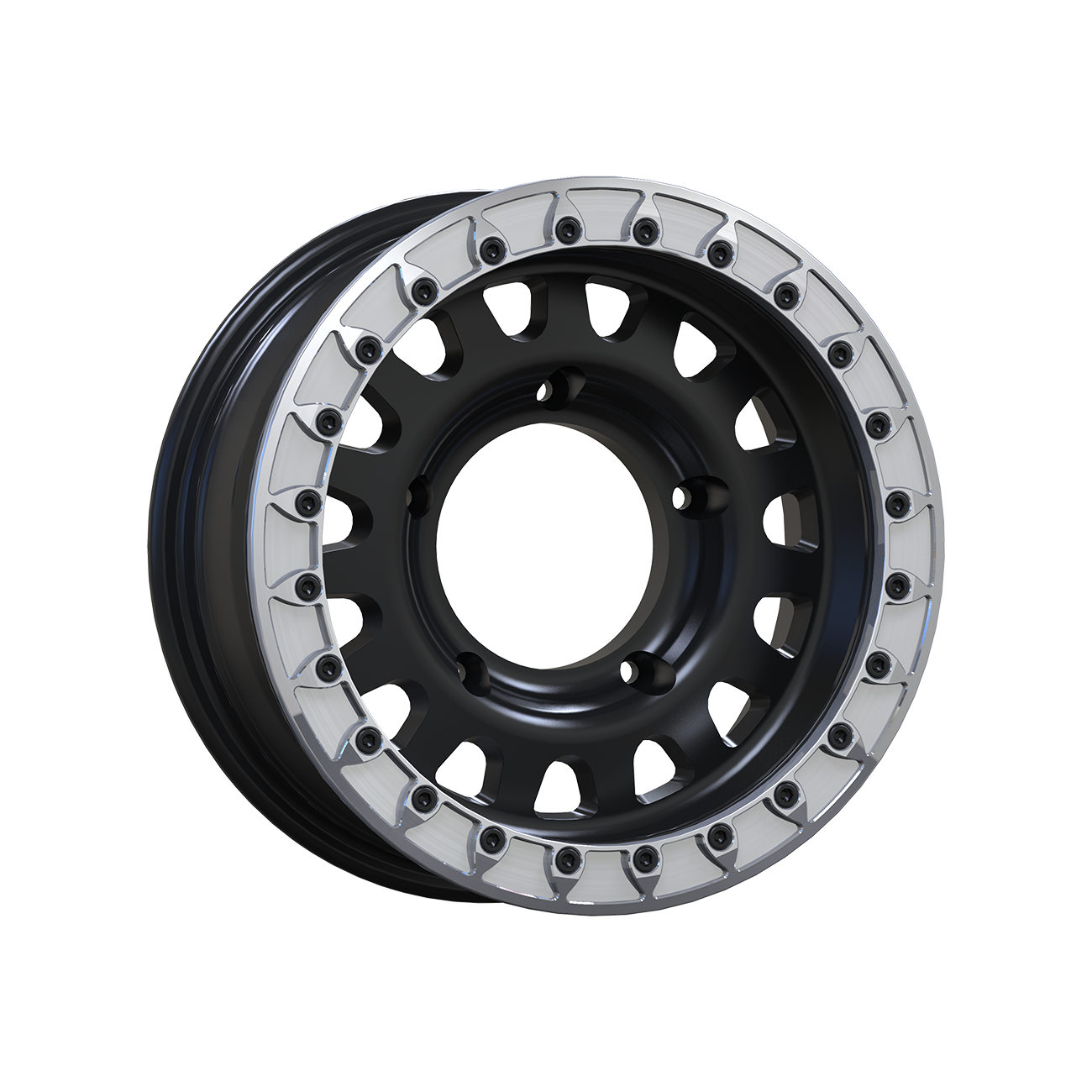

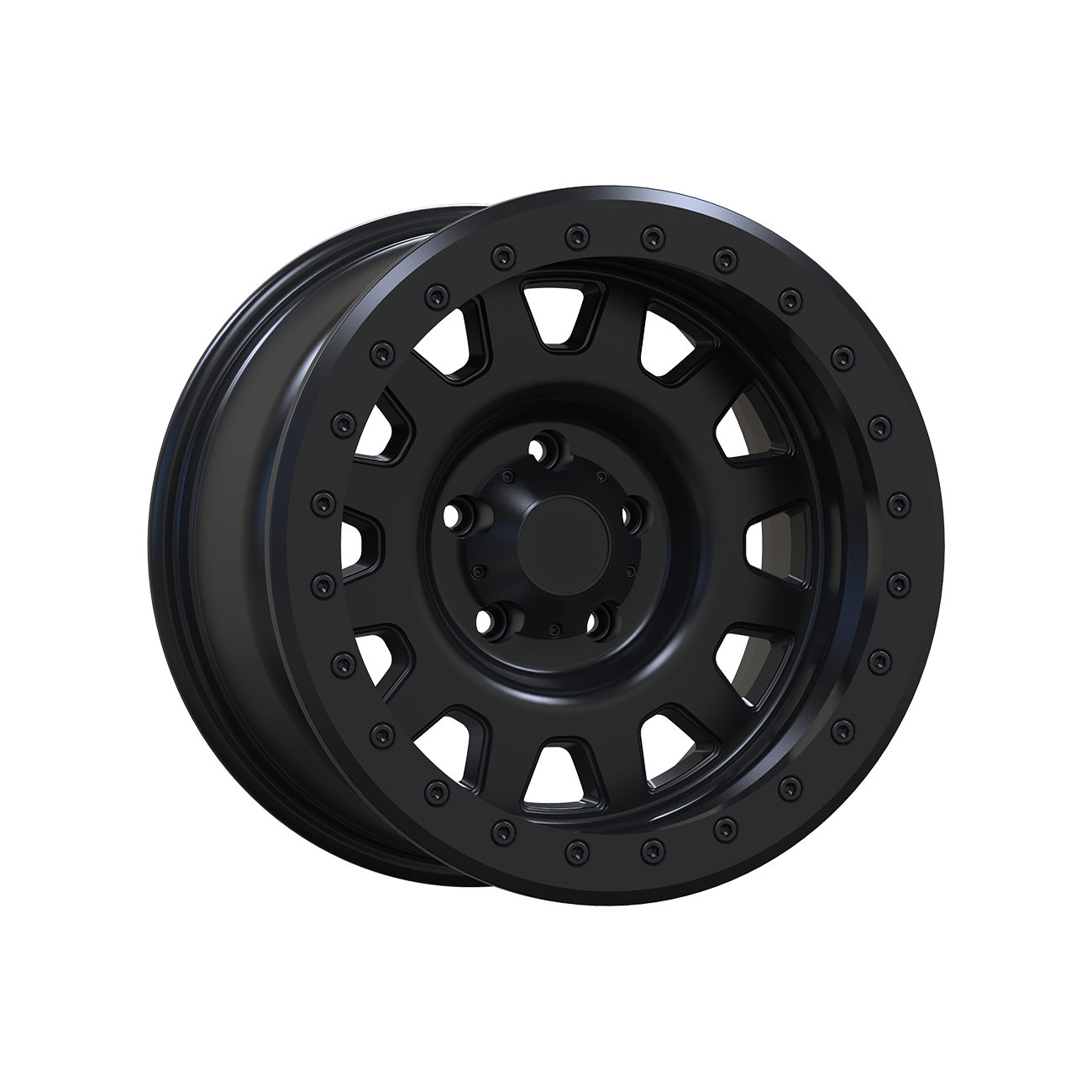

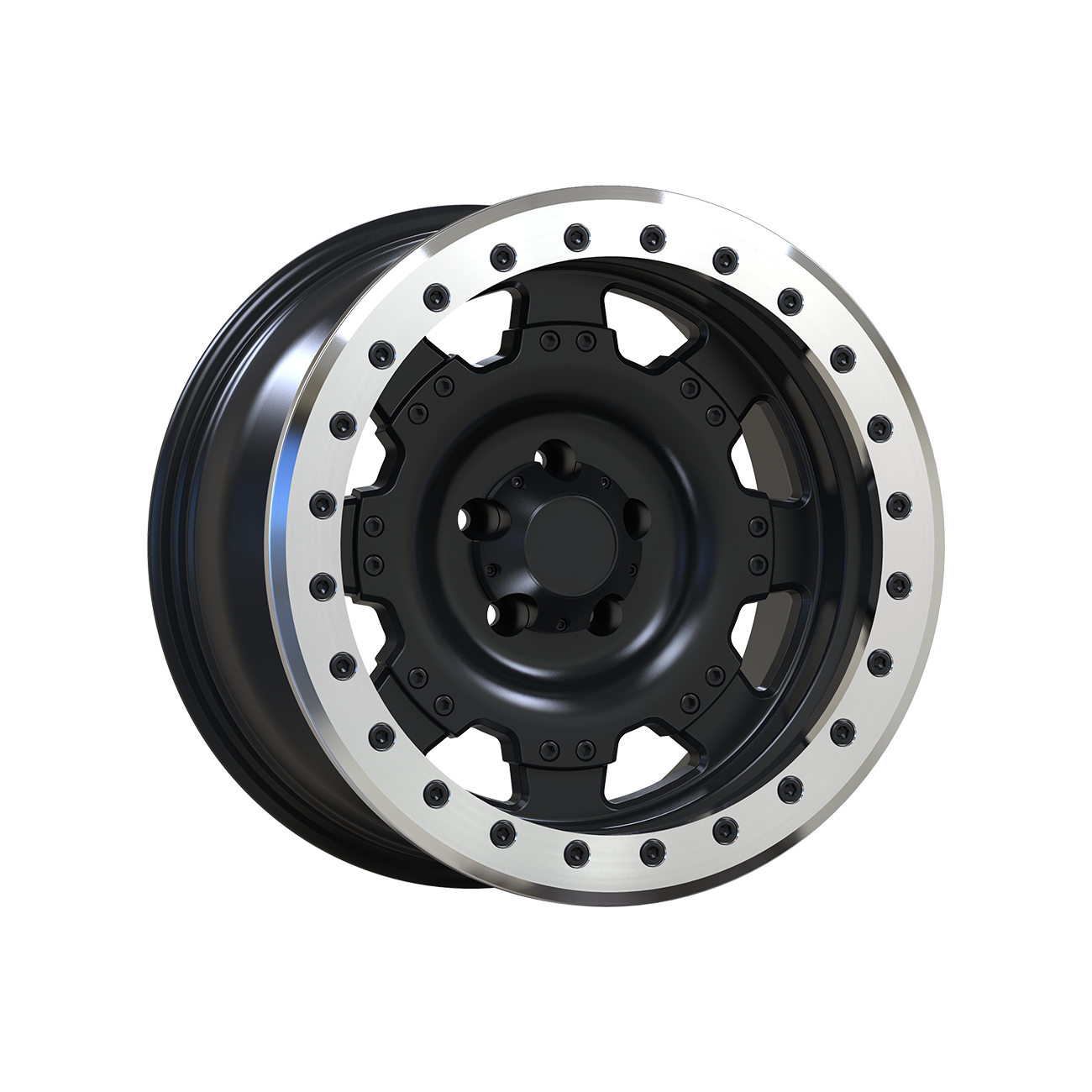

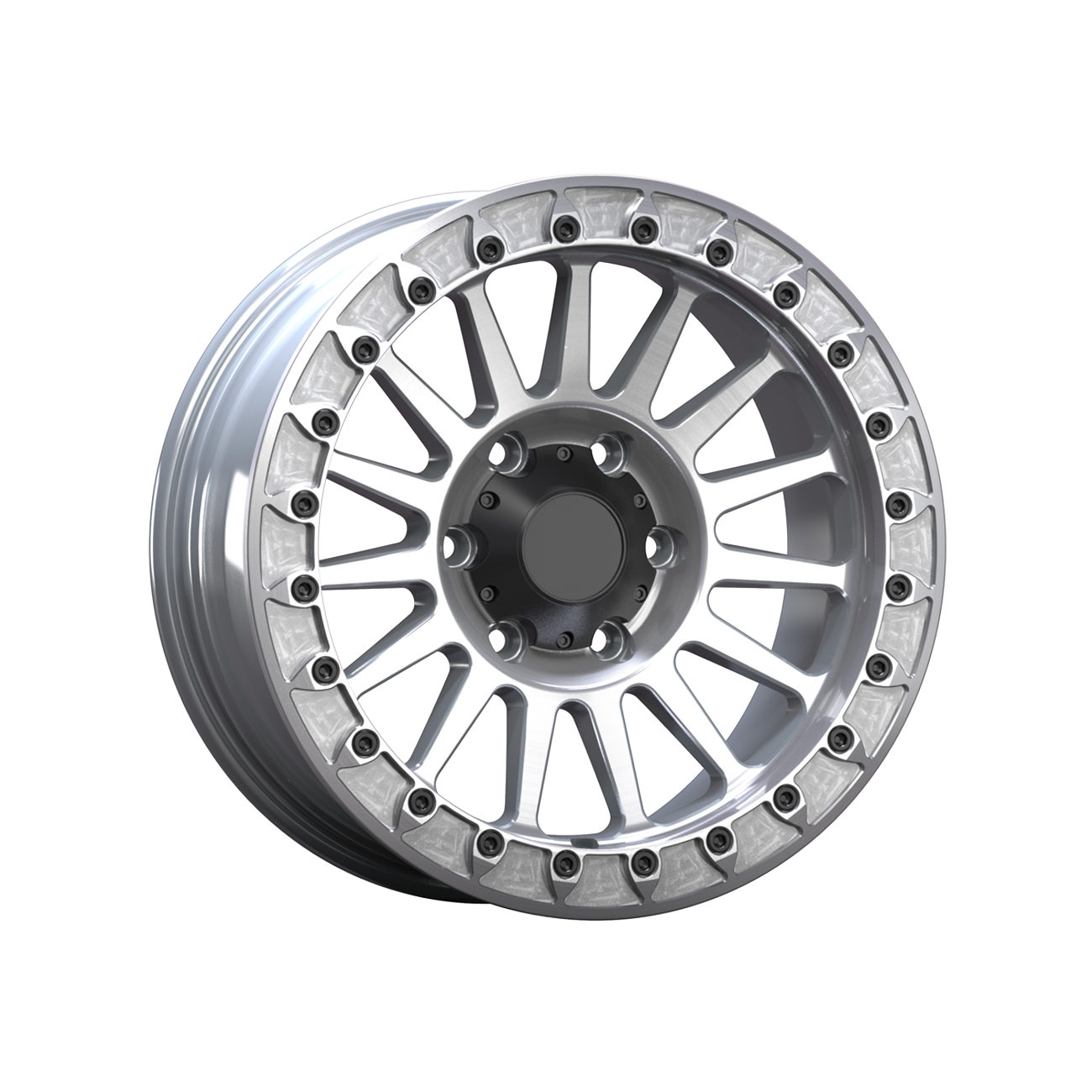

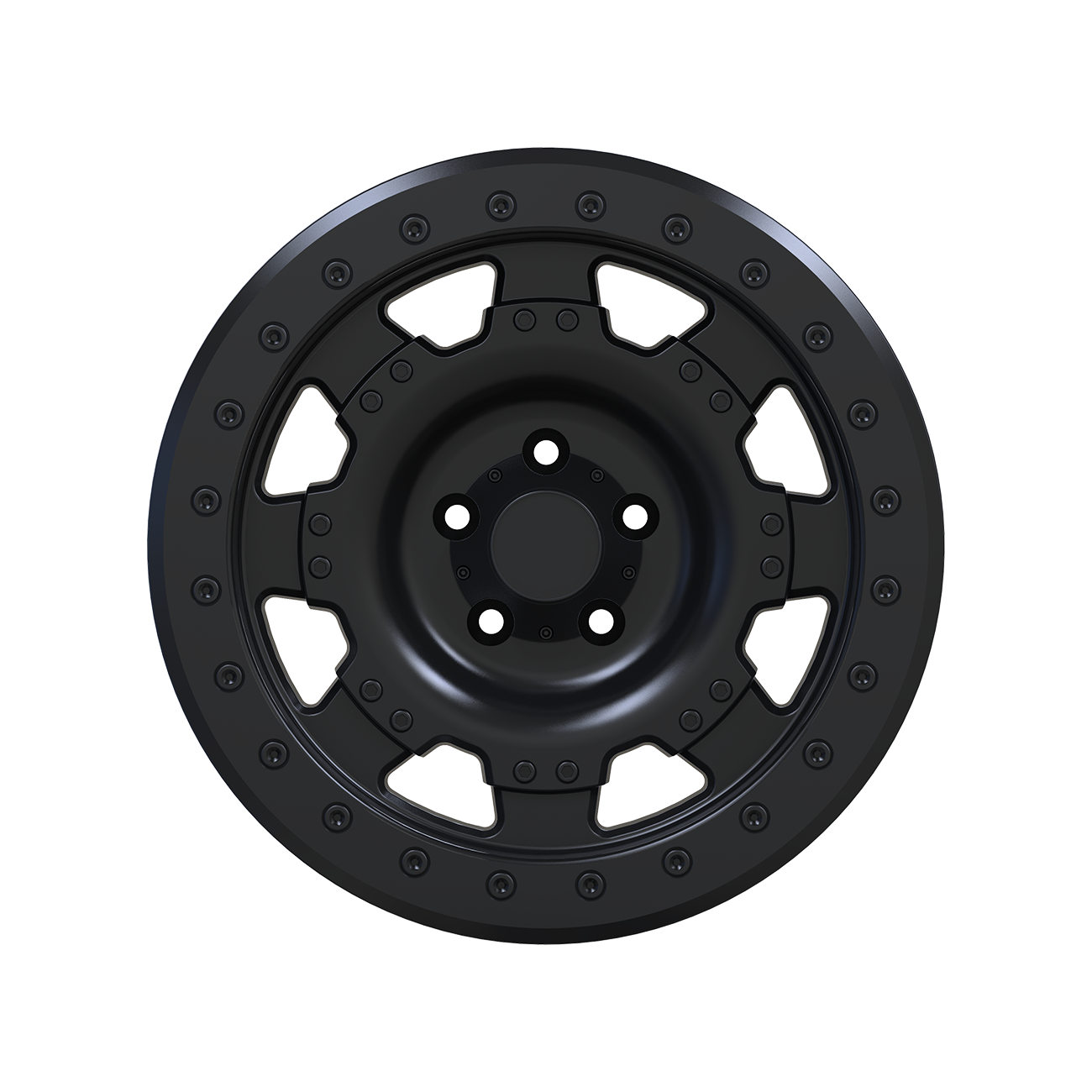

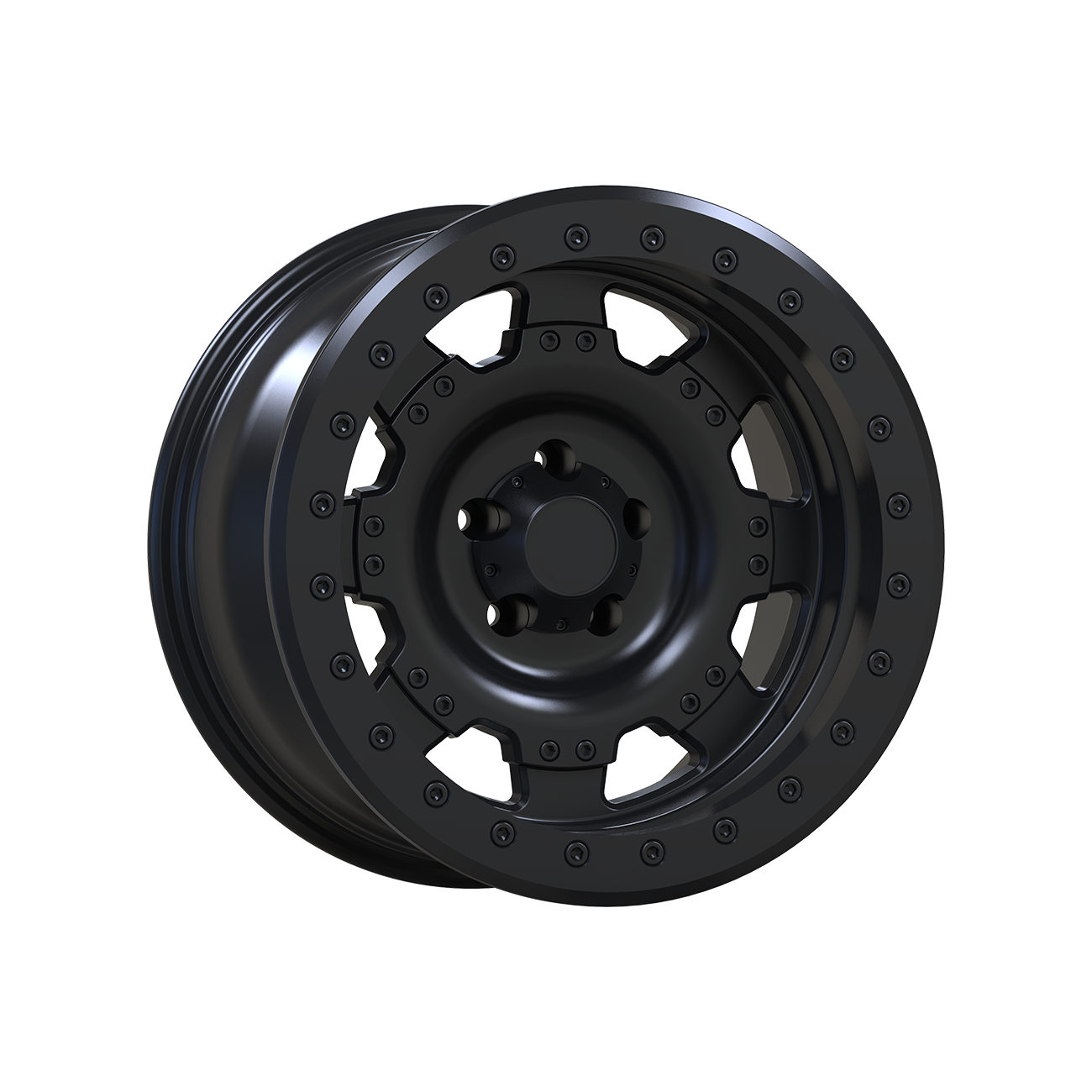

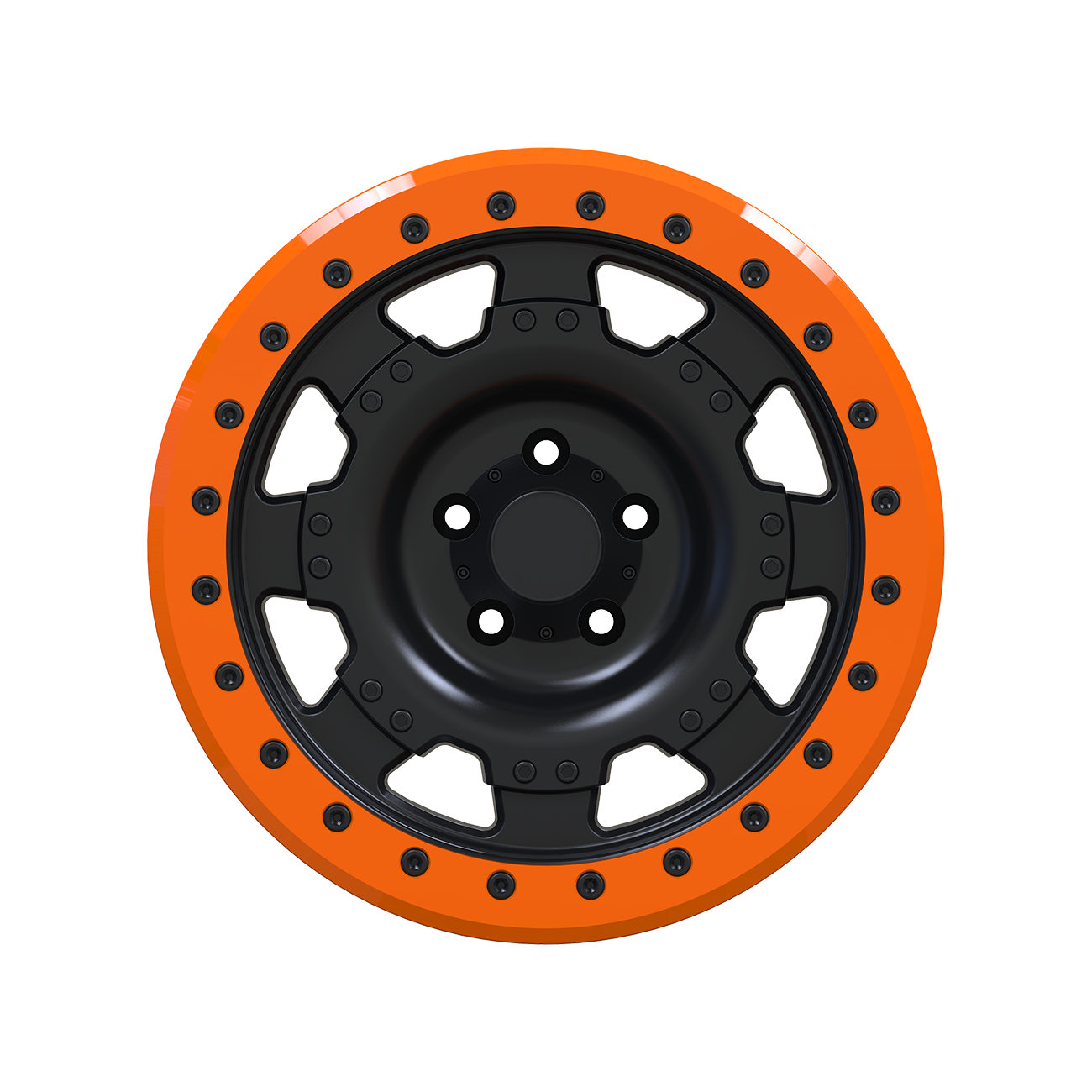

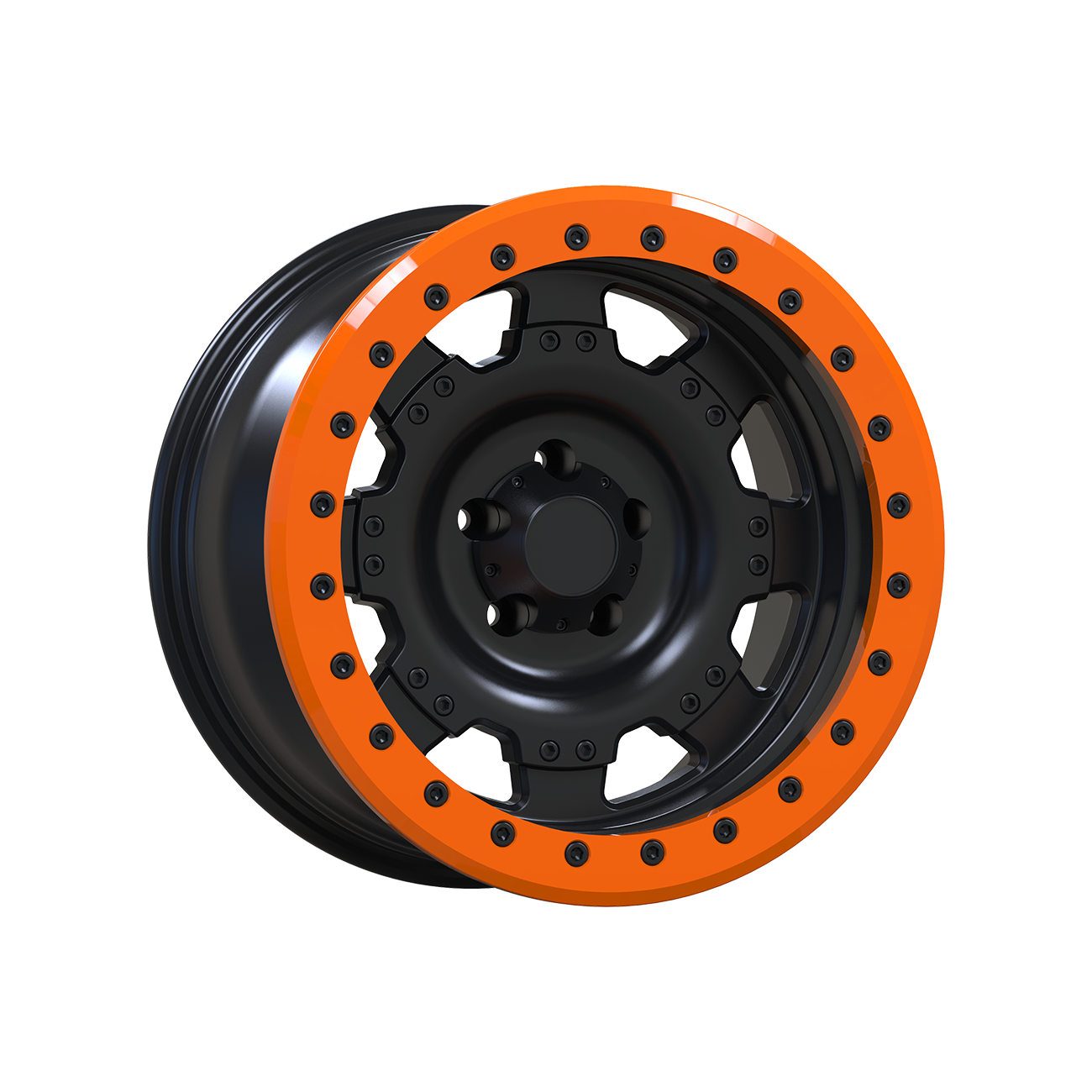

M884 4X4 Off Road wheel made 8 spokes

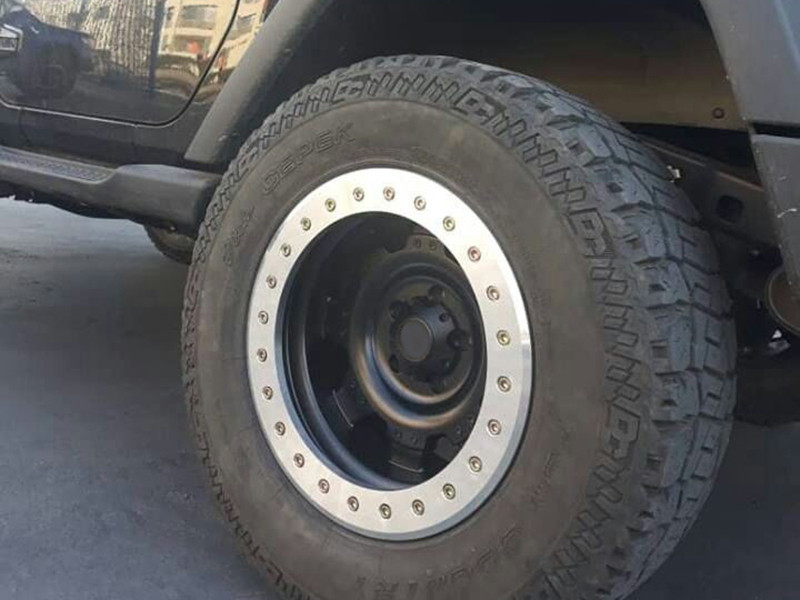

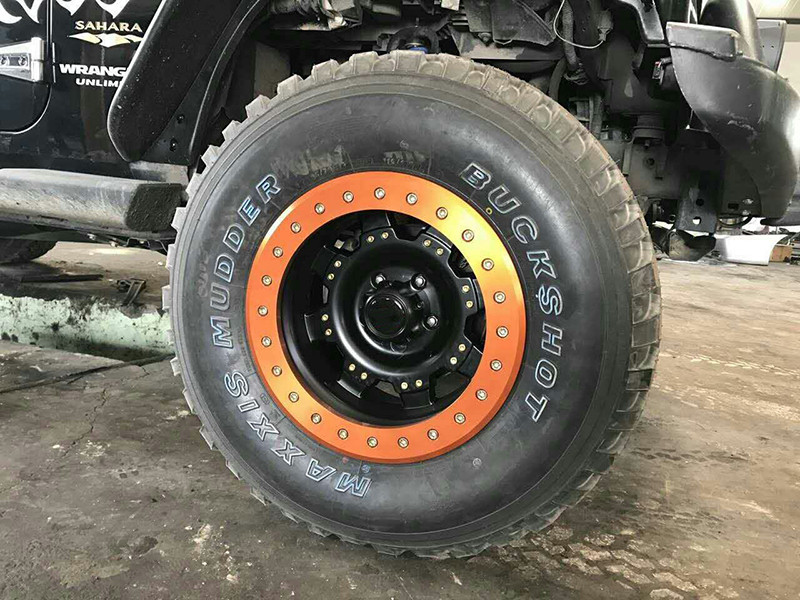

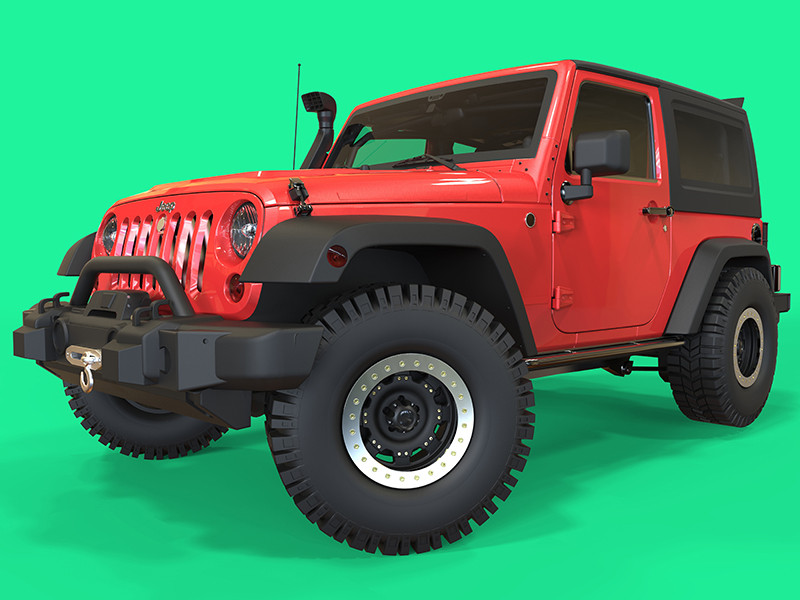

Beadlock wheels are the perfect addition choose for rock crawling, desert pre-running or anywhere your off-road vehicle can possibly go. When you drive your vehicles, these beadlock wheels will get you where you want to go safety and fast.
● Developed for the serious off-road enthusiast
● Available in 17inch with five and six bolt wheel patterns.
● Forged 6061 aluminum beadlock ring
● Solid A356 aluminum with T6 heat treatment construction
● Extra wide bead seat to accommodate large tires
● Reinforced inner lip provides extreme strength and durability
● Recessed design protection to prevent bolt head shearing
● 24pcs grade 10.8 zinc-plated beadlock bolts (greg or black) included
● Redundant sets of threaded beadlock bolt holes machined into wheel
● Super strong 2600 lbs. load rating
● Hub centric fitments for common applications
MODEL (size | bolt pattern | offset/item number)
|
SIZE |
STUD |
PCD |
CB |
ET |
|
17×9 |
5/6 |
114.3~150 |
66.1~110.2 |
-38~-12 |
Note: The specifications in the table have molds in our company, and small quantity orders can be accepted. If you need to purchase in large quantities for other sizes wheel, please provide us with drawings and requirements. We can produce wheels of any specifications and designs for you.
PCD hole applicable vehicle model：
5x114.3 for Cherokee, TJ
5x127 for Grand Cherokee, TJ，JK，JL
5x139.7 for Jimny, Ram 1500
5x150 for LC71, LC76, LC79
6x114.3 for Navara
6x139.7 for Patrol Y60, Y61, Land Crusier FJ, LC120, LC150, etc.
5X165.1 for Land Rover
8X165.1
8X170
